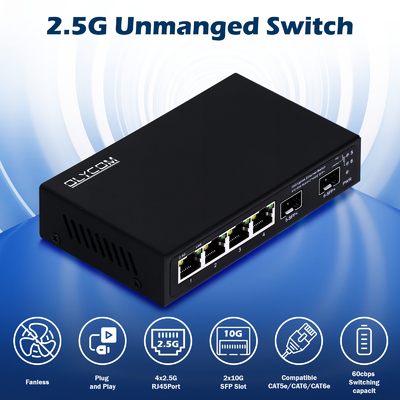

Olycom 10G Fiber 4 Port 2.5G Ethernet Switch
Key Features of 10G Fiber Switch
Using high quality and high speed network chip solution, this 2.5G LAN switch completely solves the problem of loud noise of small switches deployed in the office environment through the fanless silent design.
It has 4* 2.5G RJ45 ports and 2* 10G SFP+ port, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance.
It can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
-
- 4*10M/100M//1G/2.5G RJ45 ports
- 2*1G/2.5G/10G SFP+ fiber ports
- Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x;
- Ethernet ports support 10/100/1000M/2.5G self-adaptive;
- Support port Auto MDI/MDIX;
- Panel indicator lights monitor working status and help failure analysis;
- Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard;
- Support surge protection: common mode 6KV; ESD Air 8KV, contact 6KV.
Specification of Ethernet Switch 4 Port
| I/O Interface |
| Power |
DC 2.1 |
| Ethernet |
4*2.5G RJ45 Ports
2*10G SFP+ Ports
|
| Performance |
| Bandwidth |
45Gbps |
| Pack forward rate |
33.48Mpps |
| VLAN |
4096 |
| MAC address |
4K |
| Jumbo Frame |
12Kbytes |
| Transfer mode |
Storage & forward |
| MTBF |
100000 Hours |
| Standard |
| Network protocol |
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab(Gigabit Ethernet)
IEEE 802.3bz (5G Ethernet)
IEEE 802.3z (Gigabit Ethernet)
IEEE 802.3ae (10G Ethernet)
IEEE802.3x (Flow control)
|
| Industry standard |
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-5(Surge)
|
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)
100Base-TX: Cat5 or above UTP/STP(≤100m)
1000Base-TX: Cat5 or above UTP/STP(≤100m)
|
| Optical Medium |
multi mode: 50/125, 62.5/125, 100/140um
Single mode: 8/125, 8.7/125, 9/125, 10/125um
|
| Certificate |
| Safety certificate |
CE, FCC, RoHS |
| Environment Standard |
| Working environment |
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
|
| Power voltage |
Adapter input voltage: AC 100-240 V
switch input voltage: DC 12V1A
|
| Indicator |
| PWR(Power indicator) |
On: Powered on
Off: Powered off
|
| 1-4 Network port right indicator |
Green on:10/100M Link connect normal
Off: Link off
Flashing: data transmitting
|
| 1-4 Network port left indicator |
Yellow On: 2.5G Link connect normal, Green on: 1.25G Link connect normal
Off: Link off
|
| 5 and 6 fiber port indicator |
Red On: 10G Link connect normal
Off: Link off
Red Flashing: data transmitting
|
| Physical Specification |
| Structure size |
Product Size: 140*93*28mm
Package Size: 203*160*55mm
Product Net-Weight: 0.33KG
Product Gross-Weight: 0.46KG
|
| Packing info |
Carton size: 580*335*445mm
Packing Qty: 40pcs
Packing weight: 19.5KG
|
| Packaging list |
Switch 1pcs
User manual 1pcs
Certificate 1pcs
Power adapter 1pcs
|
Application
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
FAQ
Do you support OEM&ODM?
Yes, this is our competitive advantage.
There is a detailed introduction in the below link.
https://www.industrialnetworkswitch.com/factory.html
What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.
Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for displaying and record, please let us know if you need to check.
Can I visit your factory?
Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.
Please let us know if you have a plan.
What is your payment term?
For sample orders, full payment before production.
For bulk orders, we could do 30% deposit and balance payment before we ship your order.
The principle rule is full payment before shipment.
Do you do reselling or distribution?
Yes. Olycom has been in the telecommunication field for about 20 years and gained good reputation in domestic market.
We are actively seeking overseas agents/reseller/distributors to promote our brand and products.
Necessary technical and pricing support will be provided.
