Drone Optical Module TTL Data FC/ST/SC 20KM/30KM/40KM/60KM/80KM Fiber Distance for UAVs

Drone CVBS Video TTL Data Fiber Transceiver for UAVs



Sky end

The wavelength of the fiber optic cable of the sky end is 1490nm, and the interface is defined as: RX/TX/AV/VCC/GND. RX is connected to the CRSFTX of the flight control, TX is connected to the CRSFRX of the flight control, and AV is connected to the AV signal output port of the flight control.

Ground end

The wavelength of the fiber optic cable of the ground end is 1550nm, and the interface is defined as: RX/TX/AV/CC/GND. RX is connected to the CRSFTX of the remote control receiver, TX is connected to the CRSFRX of the remote control receiver, and AV is output to the AV signal input port of the display or VTX. Description: This device is developed for the signal transmission system of drones with 1 analog video and 1 TTL level signal. The device has the characteristics of safety and reliability, stable performance, overall light weight, and high cost performance.



Dimension

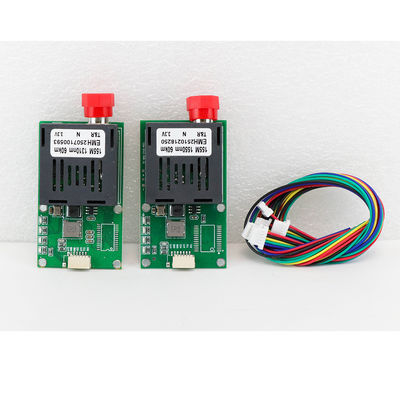

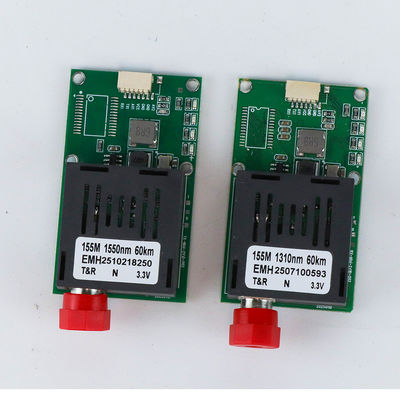

More Photos







FAQ

Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
