4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless

1 pièce
MOQ
Négociable
Prix
4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Nom du produit: Commutateur PoE Ethernet multi-Gigabit
Fonctionnalité: PoE, non géré
Budget PoE: 15,4 W/30 W, budget 60 W
Pouvoir: Le système d'alimentation doit être équipé d'un système d'alimentation électrique.
Personnalisation: Oui
Ébrécher: REALTEK
Informations de base
Lieu d'origine: Shenzhen, Chine
Nom de marque: Olycom
Certification: CE RoHS FCC ISO9001
Numéro de modèle: OM1X54(2)-PSE-GE
Conditions de paiement et expédition
Détails d'emballage: 1 pièce dans un carton, poids brut de 0,93 kg/pièce
Délai de livraison: 4 ~ 8 jours ouvrables
Conditions de paiement: T / t, paypal
Capacité d'approvisionnement: 2000pcs / mois
Description de produit

Olycom 2.5G PoE Fiber Optic Switch 4 Port



Overview



The OM1X54(2)-PSE-GE is a compact, high-performance multi-gigabit PoE Ethernet switch designed for modern networks that require higher bandwidth, silent operation, and flexible uplink capacity.
Equipped with 2.5Gbps PoE access ports and a 10Gbps SFP uplink, it enables seamless aggregation of high-speed devices such as Wi-Fi 6 access points, IP cameras, and edge switches while maintaining stable power delivery.
Its fanless, noise-free design, internal power supply, and wide protocol compatibility make it an ideal solution for offices, hotels, campuses, and small to medium enterprise networks.

Specification


Product Name

6 Port Hybrid Rate Ethernet PoE Switch

Port

1*2.5G RJ45 Port(Support MDI/MDIX, auto-sensing)

4*100/1000/2500M PoE port

1*10G SFP Port

Switching Capacity

45Gbps

Throughput

33.48Mpps

MAC Address

4K

Transfer Mode

Store and forward

MTBF

100000 hours

Network protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab(Gigabit Ethernet)

IEEE 802.3bz (5G Ethernet)

IEEE 802.3z (Gigabit Ethernet)

IEEE 802.3ae (10G Gigabit Ethernet)

IEEE802.3x (Flow Control)

PoE Protocol

IEEE802.3af(15.4W)

IEEE802.3at(30W)

PoE Wiring

1/2(+), 3/6(-)

PoE Output Voltage

DC 44-57V

PoE Budget

60W

Industry Standard

EMI: FCC Part 15, CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD), EN61000-4-5(Surge)

Network Medium

10Base-T: Cat3,4,5 or above UTP(≤100m)

100Base-TX: Cat5 or above UTP(≤100m)

1000Base-TX: Cat5 or above UTP(≤100m)

Optical Medium

multi mode: 50/125, 62.5/125, 100/140um

Single mode: 8/125, 8.7/125, 9/125, 10/125um

Certification

CE/FCC/RoHS

Working Environment

Working Temperature: -10℃~50℃

Storage Temperature: -40℃~70℃

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%, non-condensing

Power

Power Input Voltage: AC100-240V
Internal AC-DC Converter: 52V1.25A

LED Indicators

PWR(Power indicator)

On: power on
Off: no power



1-5 Port green light

On: 2.5G Link connect normal

Off: Link off

Flashing: data transmitting

1-5 Port yellow light

On: 10/100/1000M Link connect normal

Off: Link off

Flashing: data transmitting



6 Port green light/Blue Light

Blue on:10G link

Green on: 1000/2500M link

Off: Link blocked

Flashing: Data transmitting



1-4 PoE Light

On:PoE is working

Off:PoE is not working



PoE Max Power Light

On: indicates that PoE power is used at 95%<P<100%

Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%

Off: indicates PoE power usage is less than 90%

Key Features

  • 4*100/1000/2500M PoE Port+1*2500M ports+1*10G SFP+ Port
  • Support 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standard
  • Ethernet Ports support 10/100/1000/2500M self- adaptive
  • Support PoE QoS Priority, priority ranges from 1 to 4, enabled by default
  • Supports automatic port flipping (Auto MDI/MDIX)
  • Panel indicator monitoring status help failure analysis
  • Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex；
  • Support Surge protection: Common mode 4KV; Differential mode 2KV(level B); ESD: Air 12KV, Contact 6KV(level B)



Applications


1. Security & Video Surveillance
Powering and connecting high-resolution IP cameras with stable 2.5G bandwidth and fiber uplink expansion.

2. Enterprise & SMB Networks
Providing fast PoE access for Wi-Fi 6 access points, IP phones, and workstations.

3. Hotels & Commercial Buildings
Silent operation makes it ideal for guest rooms, offices, and front-of-house network installations.

4. Campus & Education Networks
Supporting high-density device connections with simplified cabling and centralized uplinks.

5. Network Upgrade Projects
Enabling smooth migration from Gigabit to multi-gigabit infrastructure without replacing existing devices.

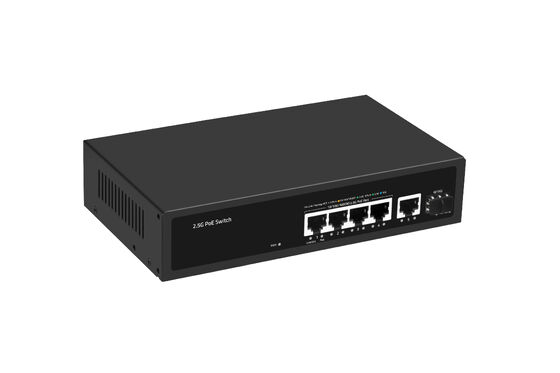

4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless 0



Packing List



  • 1pc switch

  • 1pc power adapter

  • 1pc user manual

  • 1pair brackets



Shipping box information



Product size: 200*118*44mm

Inner box size: 245*190*60mm

Product weight: 0.63Kg

Packing weight: 0.93Kg



Master box size: 520*320*400mm

Packing quantity: 20Pcs

Packing weight: 19.6Kg



Remark

Accessories(optical module, patchcord etc.)are NOT included in the packing box

Please prepare it by yourself or purchase a whole set from us

Power adapter is included in BOTH the packing box AND unit pricing

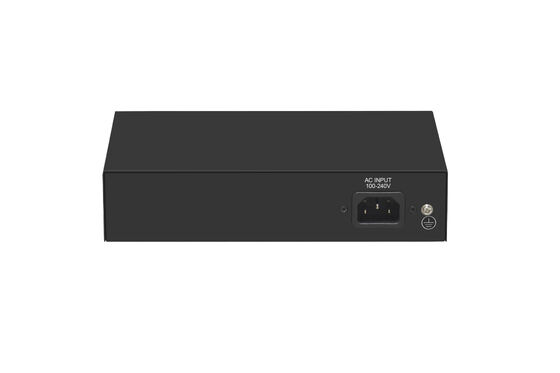

4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless 1
